STENT

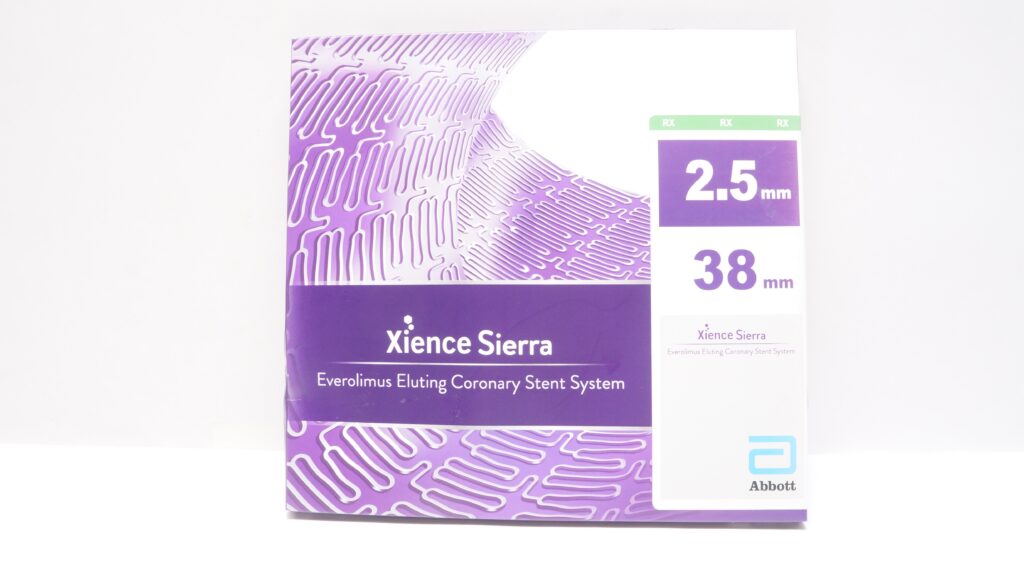

Xience Sierra
About Product:
Everolimus‑eluting stent designed for easy delivery in complex and long lesions. Strong cobalt‑chromium structure ensures precise placement and long‑term vessel support.
Sizes:
Diameter: 2.25 mm – 4.0 mm
Lengths: 8 mm – 48 mm
System: Rapid‑Exchange (RX)

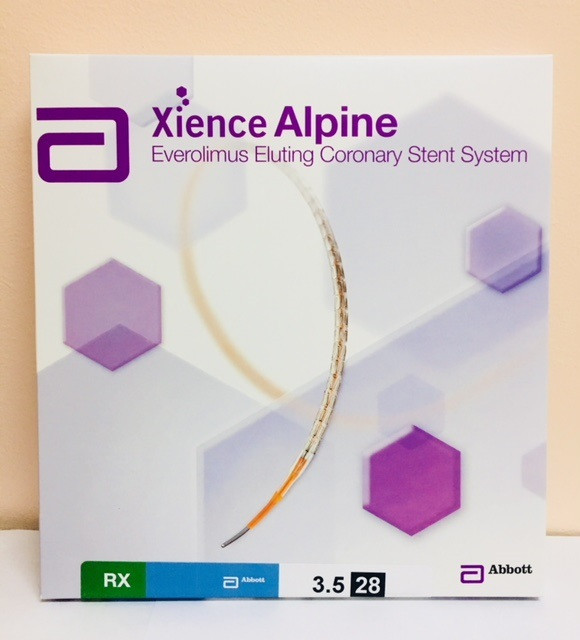

Xience Alpine
About Product:
Flexible drug‑eluting stent for chronic total occlusions and standard lesions. Offers smooth trackability and reduced restenosis risk.
Sizes:
Diameter: 2.25 mm – 4.25 mm
Lengths: 8 mm – 32 mm
Systems: Rapid‑Exchange (RX) & Over‑the‑Wire (OTW)

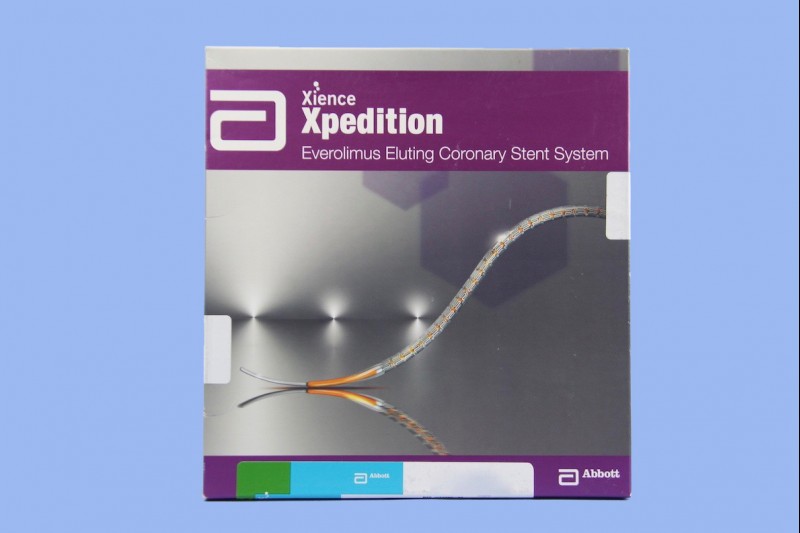

Xience XPedition
About Product:
Everolimus‑eluting stent designed for easy delivery in complex and long lesions. Strong cobalt‑chromium structure ensures precise placement and long‑term vessel support.
Sizes:
Diameter: 2.25 mm – 4.0 mm
Lengths: 8 mm – 48 mm
System: Rapid‑Exchange (RX)
BALLOONS

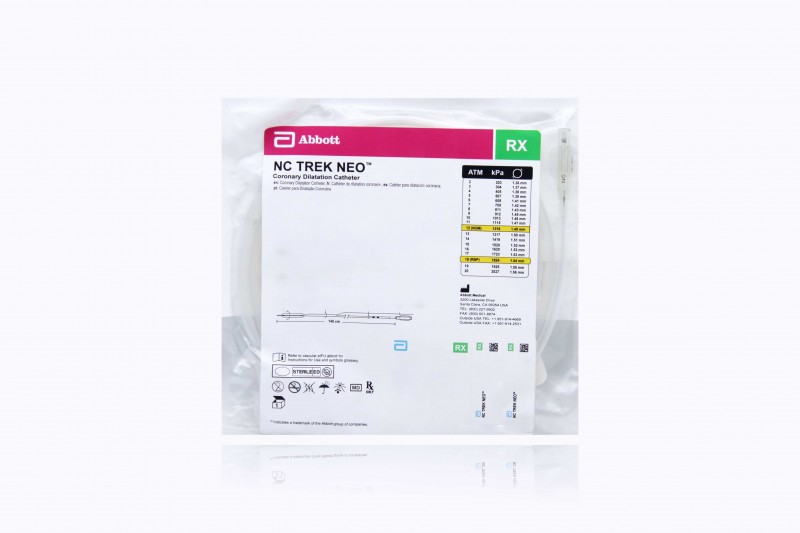

NC Trek Neo
The NC TREK NEO is Abbott’s latest non‑compliant angioplasty balloon, engineered for challenging anatomy. It offers a broad size matrix (₁.₅–₆.₀ mm Ø), 6% lower crossing profile and 68% less crossing force compared to predecessor models, ensuring excellent pushability, flat compliance and fast deflation for efficient lesion treatment.
Sizes:
Diameter: 1.50 mm – 6.00 mm
Lengths: 6 mm – 25 mm
Shaft length: 145 cm | RX delivery
- Max pressure: Rated Burst Pressure 18 atm; nominal pressure up to 14 atm depending on size
NC Trek
A proven non‑compliant balloon catheter providing consistent, controlled vessel dilatation. Ideal for standard coronary angioplasty, pre‑ or post‑stent expansion with excellent trackability in routine interventions.
Sizes:
Diameter: typically 1.50 mm – 5.00 mm
Lengths: 6 mm – 25 mm
Delivery: Rapid‑Exchange (RX)
Max pressure: up to ~18 atm depending on model

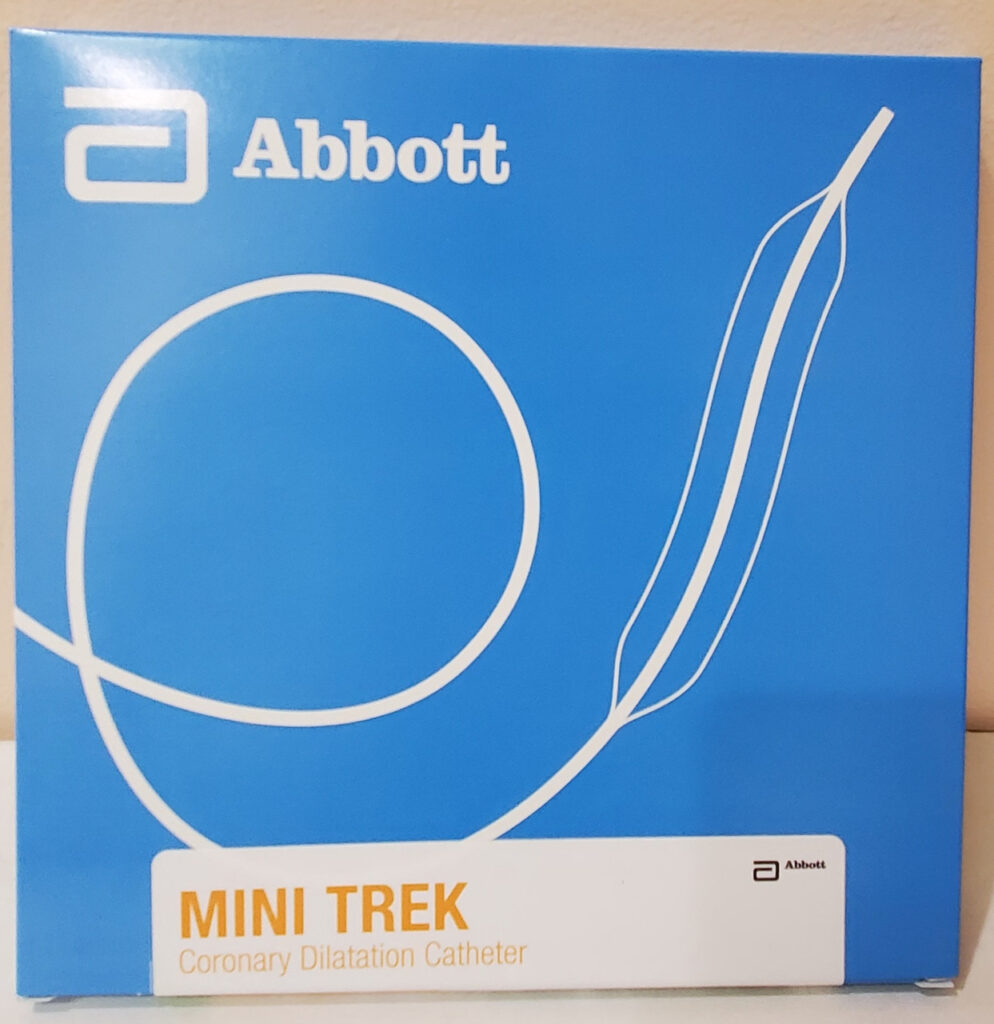

Mini Trek
Designed for fine, delicate work in tight vascular anatomy and also indicated for dilating chronic total occlusions (CTO) when in the 2.00 mm size. Compact profile enables precise control during sensitive interventions.
Sizes:
Diameter: around 2.00 mm only
Length: 6 mm (RX) or suitable CTO lengths (OTW)
Delivery: RX and OTW options
Pressure: up to ~18 atm

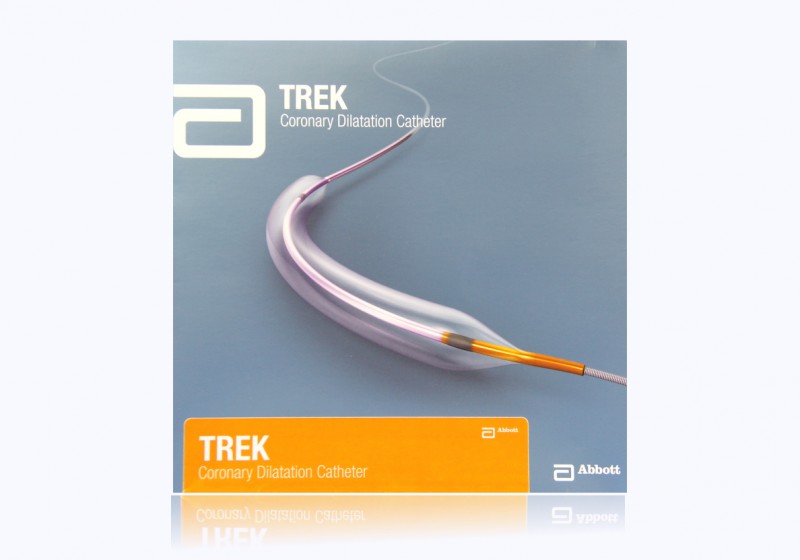

Trek
Abbott’s core coronary dilatation balloon available in both Rapid‑Exchange and Over‑The‑Wire formats. Designed for general PTCA procedures, including pre‑ and post‑stent dilation where vessel compliance and support are needed.
Sizes:
Diameter: 1.50 mm – 5.00 mm
Lengths: 6 mm – 25 mm
Delivery: RX and OTW
Max pressure: up to ~18 atm
GUIDEWIRE
AllStar
About Product:
The HI‑TORQUE All Star guide wire offers balanced support with a micro‑glide coating, making it well-suited for routine PTCA procedures where predictable torque and smooth device delivery are essential.
Specifications:
Diameter: 0.014″
Length: typically 190 cm or 300 cm
Tip profile: intermediate polymer sleeve (moderate stiffness)
Delivery: Standard use in coronary interventions

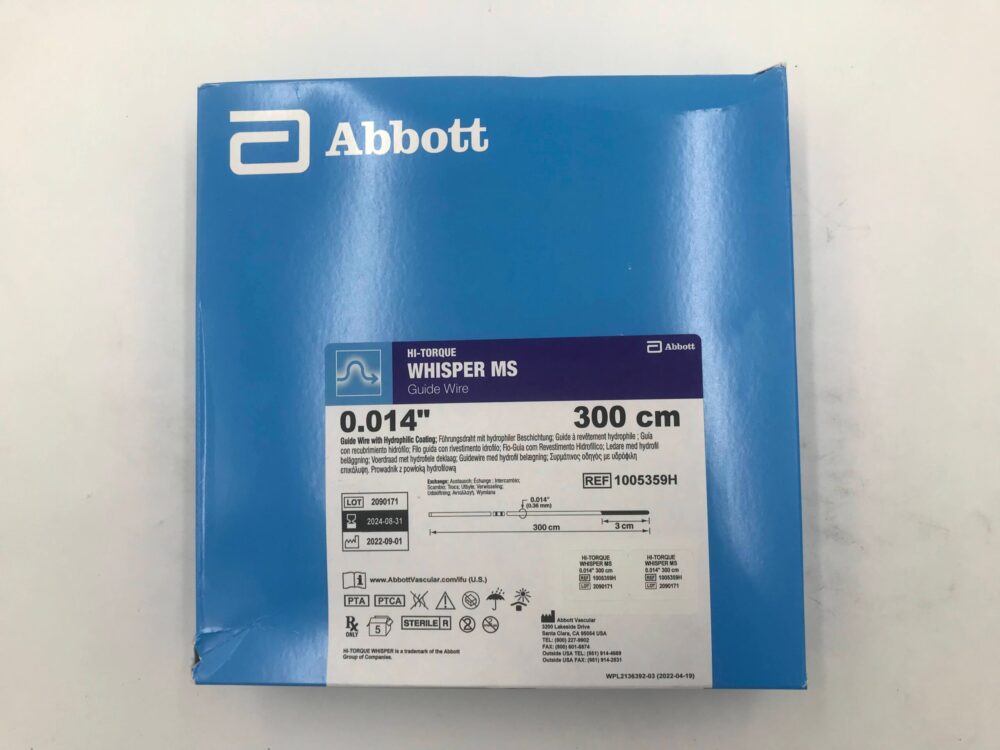

Whisper MS
About Product:
A soft‑tip, full‑polymer‑coated guide wire with excellent distal radiopacity and a hydrophilic tip load of ~1.0 g. It offers superior performance in highly tortuous vessels while minimizing trauma risk.
Specifications:
Diameter: 0.014″
Length: ~190 cm / 300 cm
Tip load: ~1.0 g (soft, atraumatic)
Coating: Full polymer, hydrophilic distal
Ideal for: Tortuous or delicate coronary anatomy

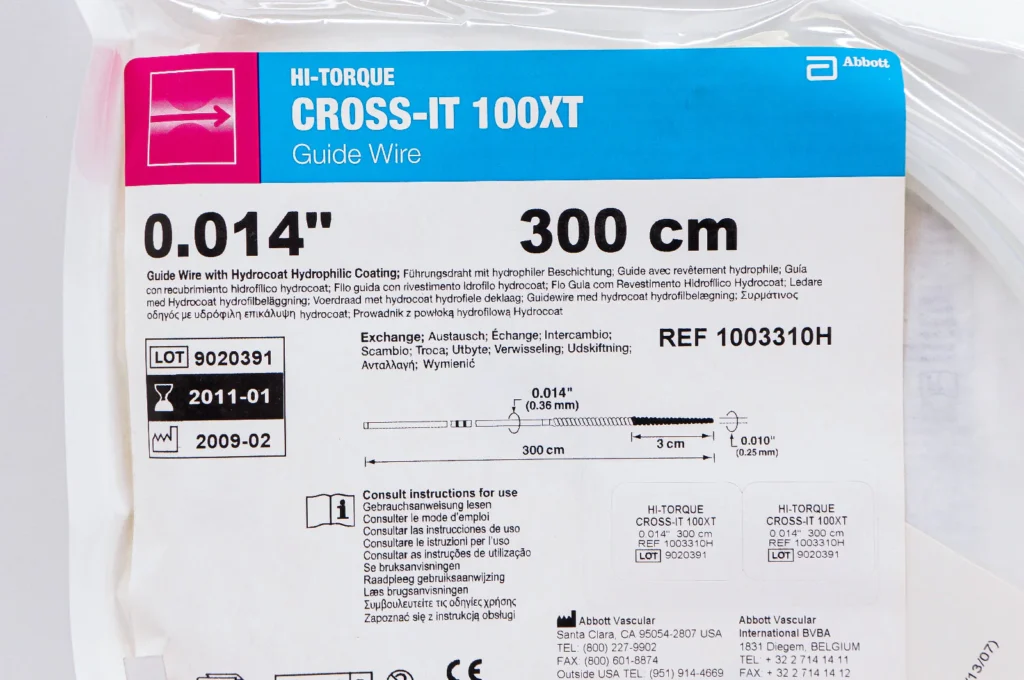

Cross IT
100/200/300
About Product:
The Cross-It family features tapered-tip guide wires with ascending tip support:
100XT offers flexible navigation,
200XT adds intermediate tip stiffness,
300XT delivers high support for demanding CTO or complex lesions.
Specifications:
Diameter: 0.014″
Tip load progression: ~1.6 g for 100XT; higher for 200XT & 300XT
Supports: From flexible navigation to robust lesion penetration

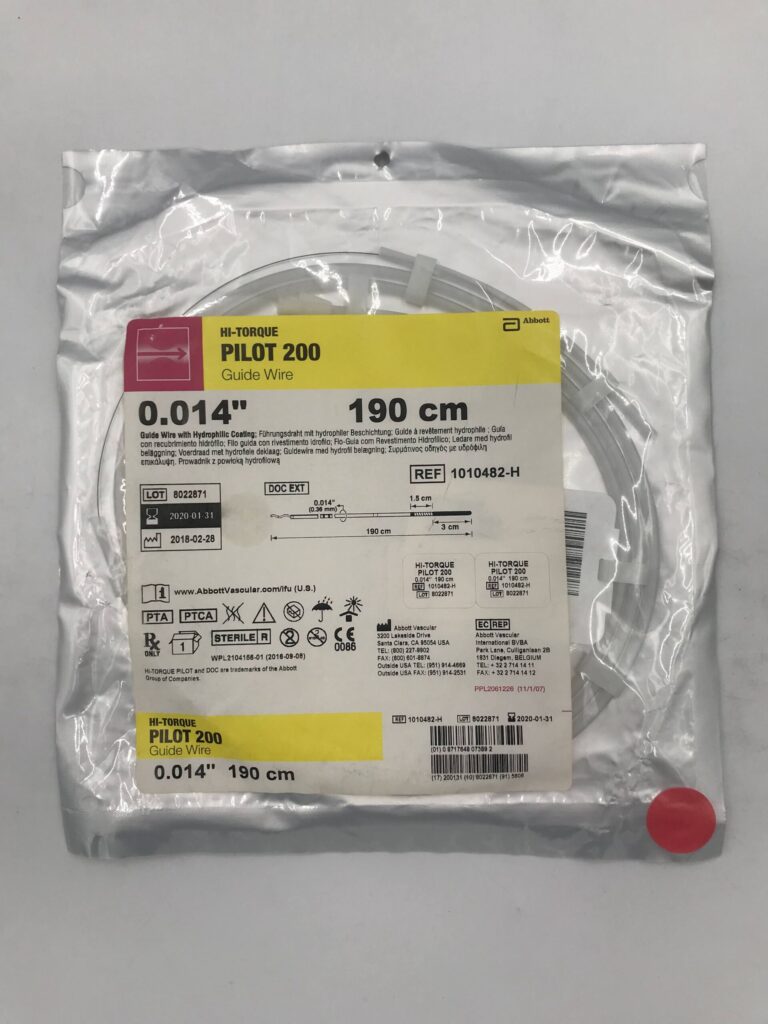

Pilot 50/150/200
About Product:
Hyrophilic polymer‑tipped wires designed for control and tip stiffness escalation—Pilot 50 (~1.3 g) gives moderate support, while Pilot 150 and Pilot 200 provide stronger tip stiffness (especially 200 with ~3.9 g), optimized for CTO and tough lesion crossing.
Specifications:
Diameter: 0.014″
Tip Load:
Pilot 50: ~1.3 g
Pilot 150: intermediate (CTO‑capable)
Pilot 200: ~3.9 g (high‑penetration)
Length: ~190 cm
Best use: CTO and challenging lesion crossing
